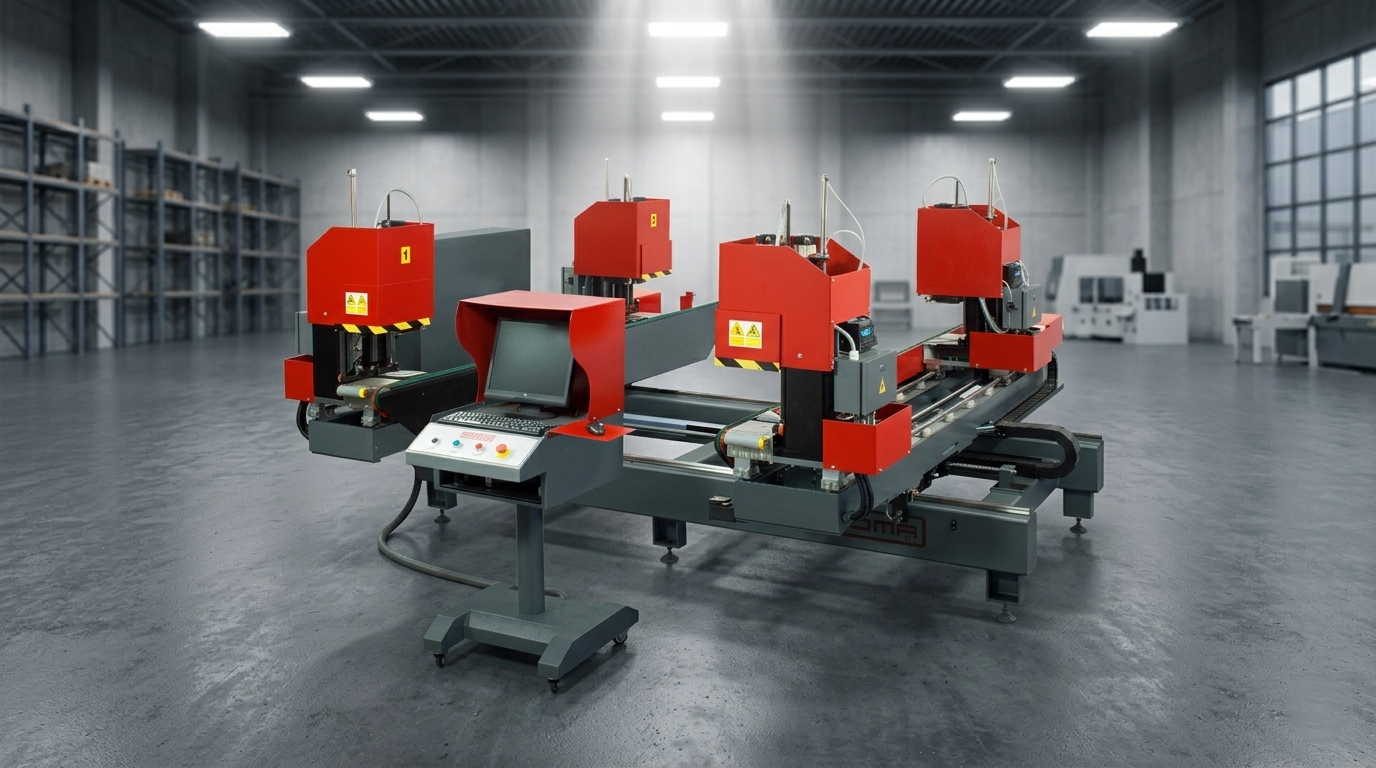

Precision welding for the highest demands. For welding a PVC window frame or sash with 90° angle welding heads in one operation.

Product Inquiry
SKU: WSA4H Category: Tags: , , ,

Horizontal Welding Machine WSA4H

Why Choose WEGOMA?

  • User-friendly loading positions
  • Heated weld bead limitation 0.2 to 2 mm
  • PC control with online connection
  • Electronic function monitoring
  • Quick change device for welding foils
  • Automatic removal of the workpieces
  • Pneumatic profile feed

Special Accessories

  • Parallel thrust for flexible welding limitations
  • Gasket former
  • Scanner
  • U-weld
  • Outward transport with Vario speed
  • Interchangeable limitation knifes
  • 2 + 2 welding for oversized elements
  • Servo motorized pressing and joining
  • Profile-specific counter blocks

Technical Data

Voltage:220/400V, 50/60Hz
Dimensions welding cleaning line:1350 × 500 cm
Air supply:6 – 8bar
Max. welding temperature:300°C
Temp. welding bead limitation:65°C
Welding area in a line :450 × 450 mm
Welding area without a line :400 × 350 mm
Max. welding area:2100 × 2400 mm
Max. profile height:120 mm
Min. profile height:35 mm
Weight:2580 kg
