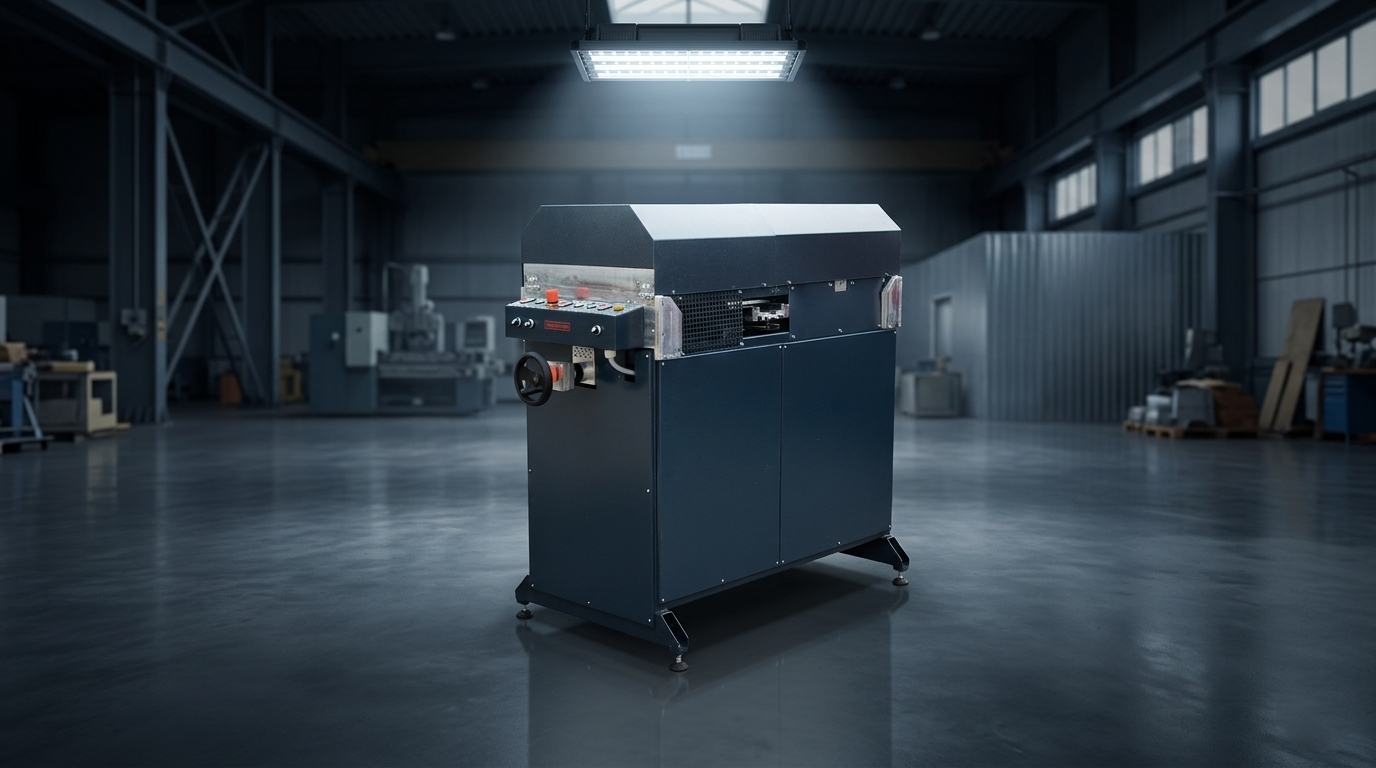

Glazing Bead Saw GL242

Classic glazing bead saw with two HM saw blades to cut glazing beads in double cut. Two 300 HM saw blades with 150mm shim undercut the glazing bead seal for optimum results.

SKU: GL242 Category:

Glazing Bead Saw GL242

Why Choose WEGOMA?

  • Precise adjustment of the sawing angle using a hand wheel (optionally with servomotor) that enables optimal assembly for any glass thickness
  • Glass simulation clamps and clampsr at the feet of the glazing bead
  • 300 mm saw blades (+150 mm additional blade) for high speeds for a precise cutting result
  • Saw feed via flat guides
  • 2x powerful 1.5 kW brake motors
  • Jetter PLC control
  • Air blower for free sawing area
  • Arrangement of the engines from above ensures that sections falling down
  • Collection tray for sections

Special Accessories

  • Third motor for 90° cuts
  • Vario stop manually
  • Electronic length stop with Bluetooth measuring



YouTube

Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren

Video laden

Technical Data

Voltage:400 V, 50/60 Hz
Power per motor:1,5 kW
Speed:2800 rpm
2 carbide saw blades:300 mm
2 carbide saw blades r. / l.:150 mm, 45°
Cutting range:35 mm
Visible width:140 mm
Compressed air connection:6-8 bar
Weight:300 kg
