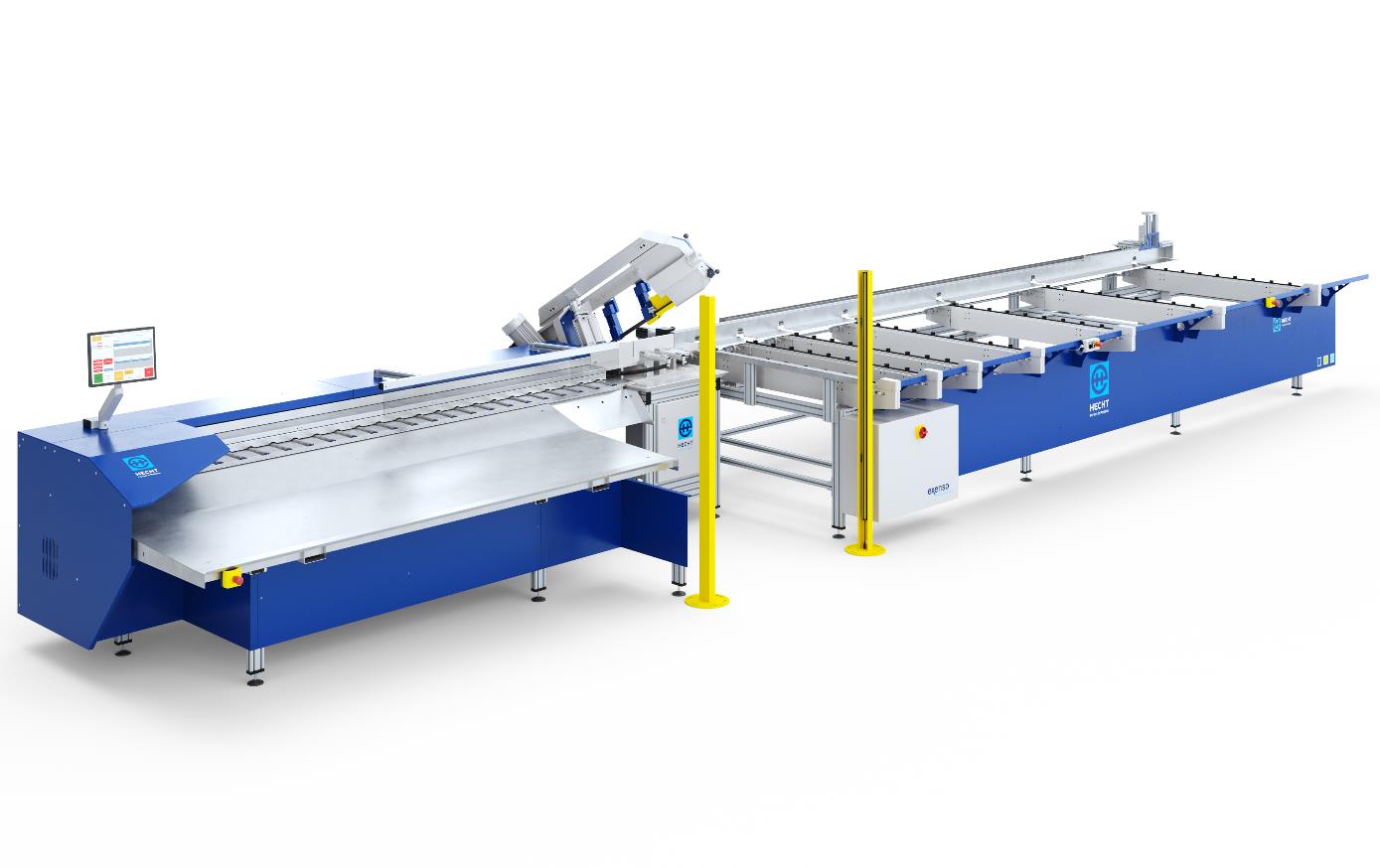

Saw cutting centre ESA-9
Why choose WEGOMA?
- Working direction from right to left
- Infeed: Material feed via chain conveyor for automatic 9-compartment loading
- Raw bar length from min. 400 mm to max. 6,000 mm

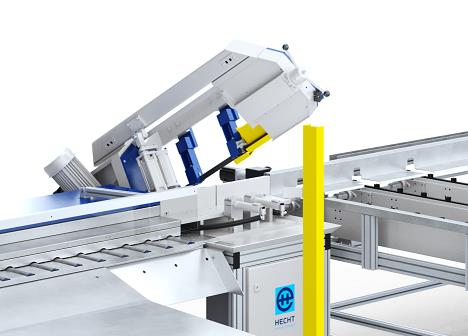

- Automatic band saw with pneumatic clamping system consisting of 3 clamping elements
- Infinitely adjustable saw feed via hydraulic unit
- Communication via a REST API interface

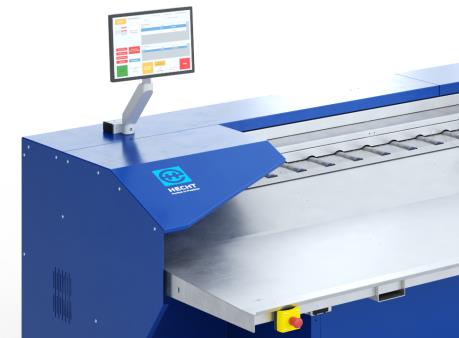

- Work sequence controlled via the Exenso control system
- The sawing area is secured from the front by a light curtain

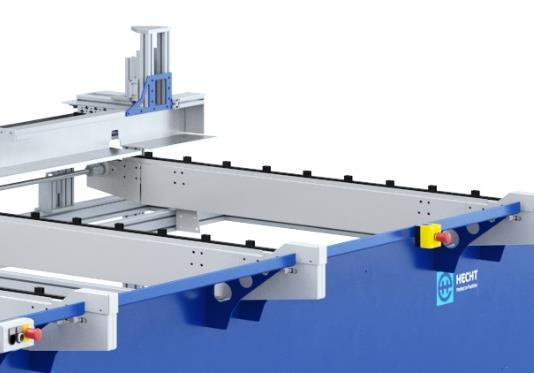

- Roller-guided push-out unit over three levels for part length max. 3,500 mm, waste removal max. 600 mm
Procudt advantages:
- Synchronised cutting of reinforcing steel with the profile processing centre (PVC window profiles)
- Steel profiles are placed on the infeed magazine by the operator
- Steel is automatically fed in and supplied
- The data for the required lengths of the PVC cutting centre are transferred from the customer‘s window construction software via an integrated data interface
- Optimised cutting of the specified length
- Conveying of the steel to the removal position in the outfeed
- Integrated waste disposal via ejector unit
- Remaining pieces labelled at the deposit position marked for manual placement by the operator
Variants & accessories:
- Working direction from left to right
- Protective fence elements 2,000 mm (rear and front)
- Optionally, after examination, a double cut be worked

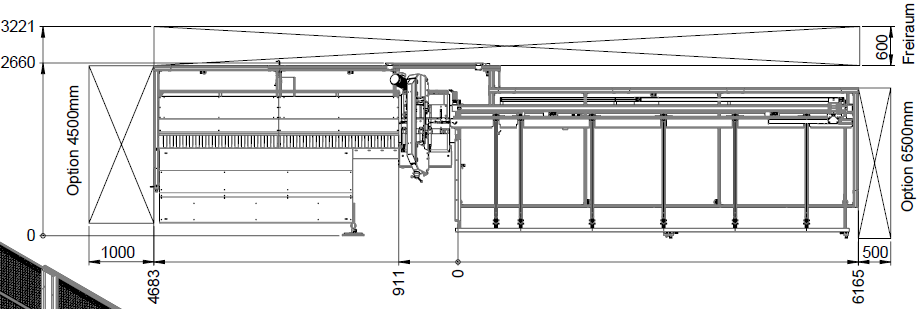

- Extension kit: Infeed – raw bar length max. 6,500 mm
- Extension kit: Outfeed – part length max. 4.500 mm
- Connection options for barcode scanners and label printers
- Software connection to:Klaes, Orgadata, ProLogic, 3E,…
- Cutting optimisation of the specified data records
- REST API data interface can be adapted to an existing cutting centre after testing
- Steel terminal for ESA cutting centre
