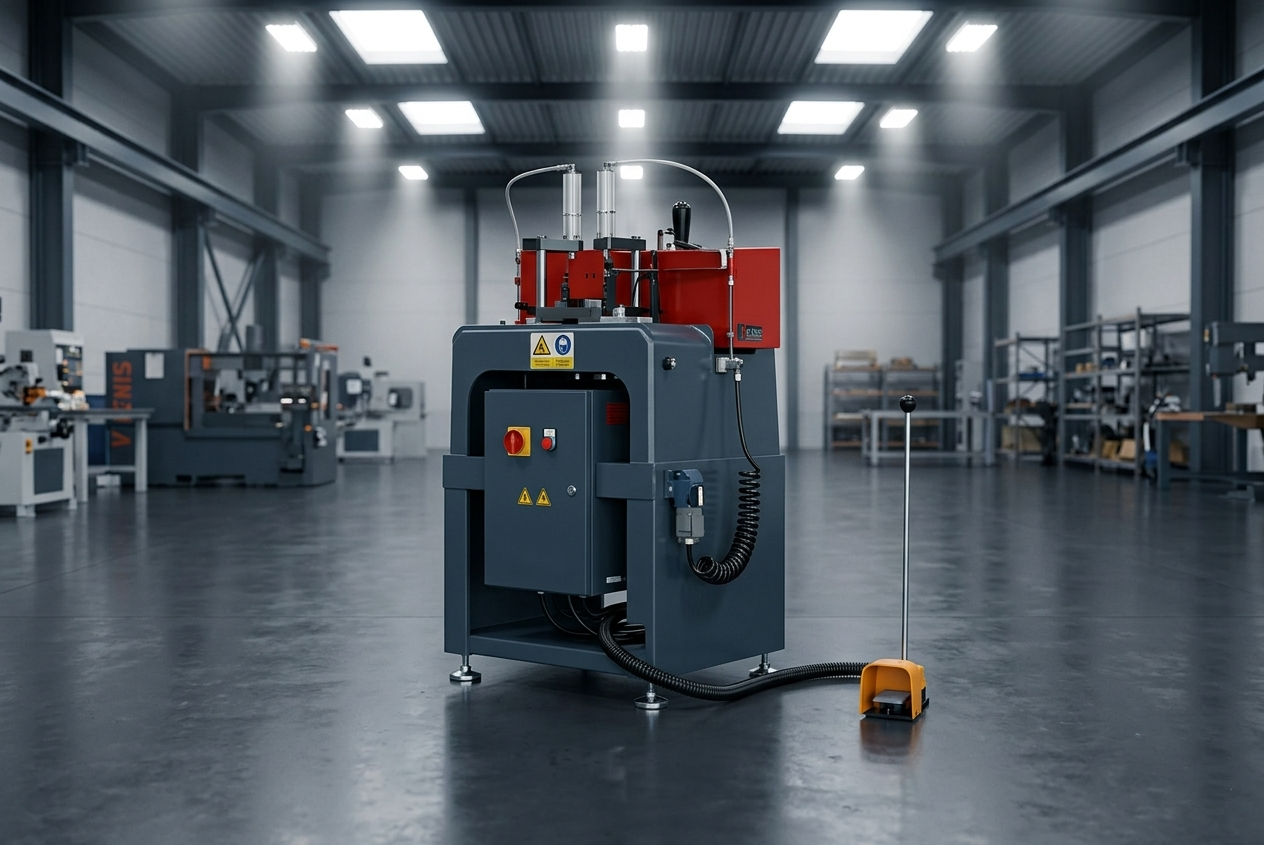

End Milling Machine AKF125M

For transverse milling of plastic and aluminum profiles, with quick-change cutter set. Easy to use and perfect results.

End Milling Machine AKF125M

Why Choose WEGOMA?

  • Manual feed
  • Pneumatic double clamping device
  • Profile stop can be tilted up to 60° on both sides
  • Depth stop for four positions
  • Quick change device for cutter replacement
  • With machine stand
  • With automatic stop by engine brake

Special Accessories

  • Cooling spray device
  • Milling shaft also in different diameters
  • Profile-specific cutter sets

Technical Data

Voltage:220/400 V, 50/60 Hz
Power:1.2 kW
Speed:2800 rpm
Max. milling path:380 mm
Max. milling depth:90 mm
Max. milling cutter diameter:210 mm
Milling spindle diameter:32 mm
Max. profile width:100 mm
Max. profile length:250 mm
Air connection:6 – 8 bar
Weight:50 Kg
