Mill triple holes – Copy Router with Triple Drill KF130S

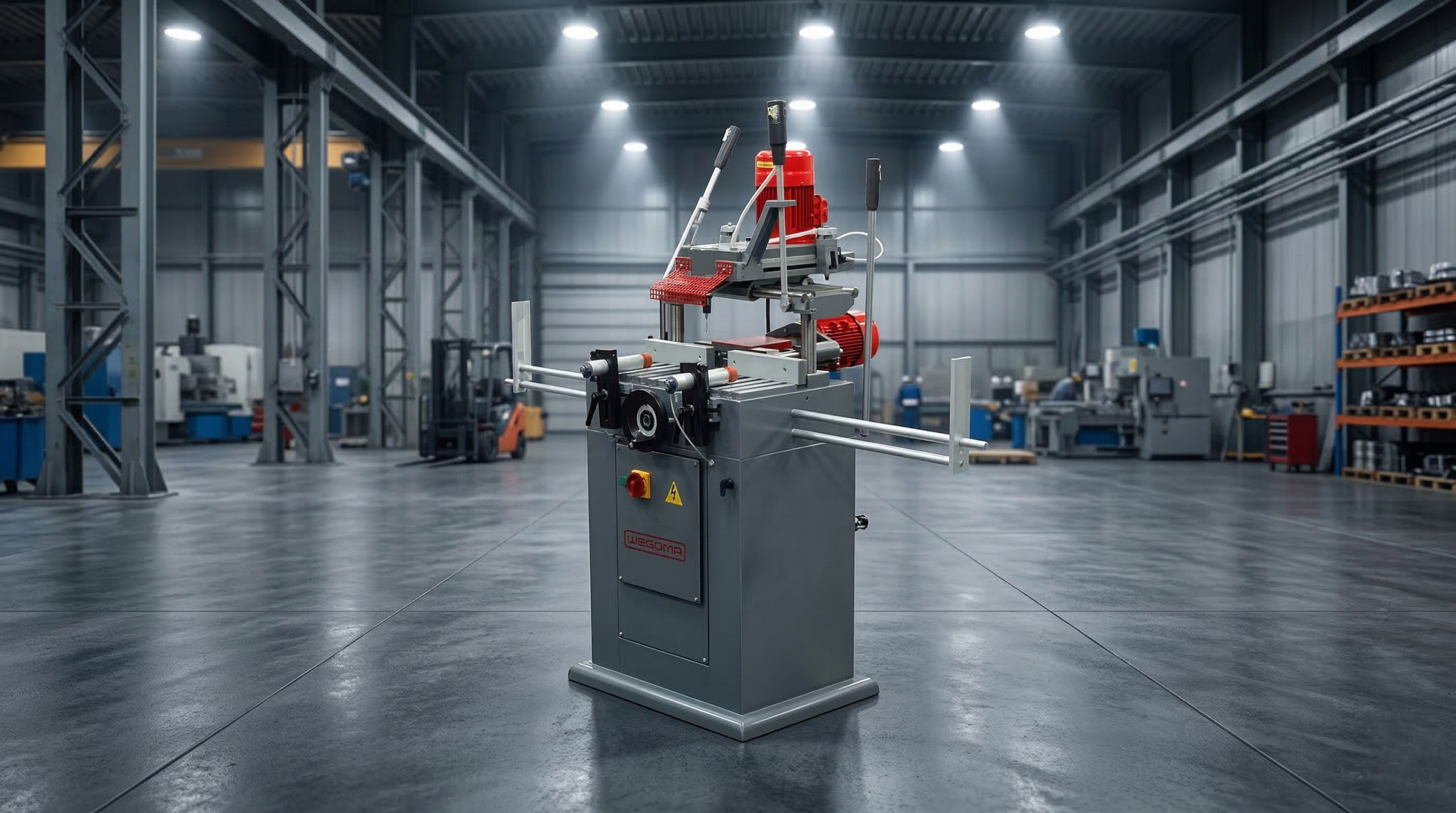

Copy Router with Triple Drill KF130S

Copy Router with Triple Drill KF130S

Flexible triple drill and copy router with pneumatic double clamping. The milling motor from above can be operated with a template or limit stops. The robust three-spindle drill head can be easily adapted to the required drilling heights.

Product Inquiry
SKU: KF130S Category: Tags: , , , , ,

Copy Router with Triple Drill KF130S

Why Choose WEGOMA?

  • Attractive price-performance ratio
  • Continuous milling
  • Large milling area
  • Robust three-phase motors
  • Safe working thanks to two-hand control

Special Accessories

  • Centering stop
  • Stop for constant handle positions
  • Special templates

Technical Data

Voltage:220/400 V, 50/60 Hz
Power:1.1 kW
Speed:2800 rpm
Milling area:220 x 115 mm
Milling depth:110 mm
milling spindle speed:14000 rpm
Vertical adjustment of drill:6 – 80 mm
Drilling speed:1400 rpm
Air connection:6 – 8 bar
Weight:150 kg
